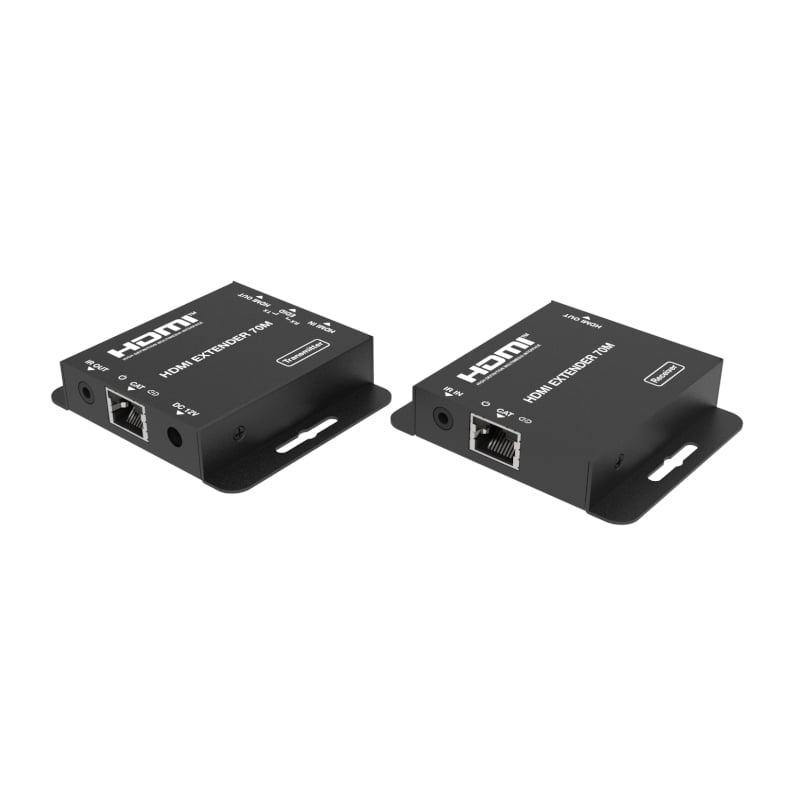

Hdcvt HDMI1.4 70M Extender With Ir

The Hdcvt HDMI Extender With Ir Control Can Extend Your High Definition Video/Audio Signal And Ir Control Signal Up To 70M For 1080P Resolution, And Up To 40M For 4K30 Resolution Via A Single Cat6 Cable. The High-Quality Construction Allows You To Achieve Zero Delays, As Well As Uncompressed Long-Distance Transmission Between The Transmitter And Receiver. This Extender With HDMI Loop Output Can Also Be Cascaded To The Next Extender, Supporting Resolutions Of Up To 4K @ 30Hz. For Additional Versatility, It Supports The Edid Copy Function As Well (You Can Choose Local Or Remote Edid). To Top It All Off It Also Supports High-Quality Audio Formats Like Pcm7.1, Dolby True Hd, Dts Hd. This Product Can Be Widely Used In Multimedia Conference Halls, Tv Teaching Or With Large-Screen Displays.

Features:

• HDMI 1.4, Hdcp 1.4 And Dvi 1.0 Compliant


• Support Video Resolution Up To 4K2K@30Hz Yuv 4:4:4


• Cat6: 230Ft/70M For 1080P, 131Ft/40M For 4K30


• Cat5E: 197Ft/60M For 1080P, 115Ft/35M For 4K30


• Support Copying Edid From Receiver Display Or Loop Out Display


• Allow For Cascading Via Additional HDMI Loop Out Port


• Support One-Way Poc Functionality (From Transmitter To Receiver)


• One-Way Ir Signal Transmission

Specifications:

• HDMI Compliance: HDMI 1.4


• Hdcp Compliance: Hdcp 1.4


• Video Bandwidth: 10.2Gbps


• Video Resolution: Up To 4K@30Hz


• Audio Support Up To 7.1Ch Hd Audio


• Input Tmds Signal: 3.3 Volts


• Input Ddc Signal: 5.0 Volts/P-P


• Esd Protection



  • Human Body Model:



    • +/- 8 Kv (Air-Gap Discharge)


    • +/- 4 Kv (Contact Discharge)










• Transmitter:



  • Input:



    • 1 X HDMI Type A [19-Pin Female]






  • Output:



    • 1 X HDMI Type A [19-Pin Female]


    • 1 X Ir Out [3.5Mm Stereo Mini-Jack]


    • 1 X Cat Out [Rj45, 8-Pin Female]

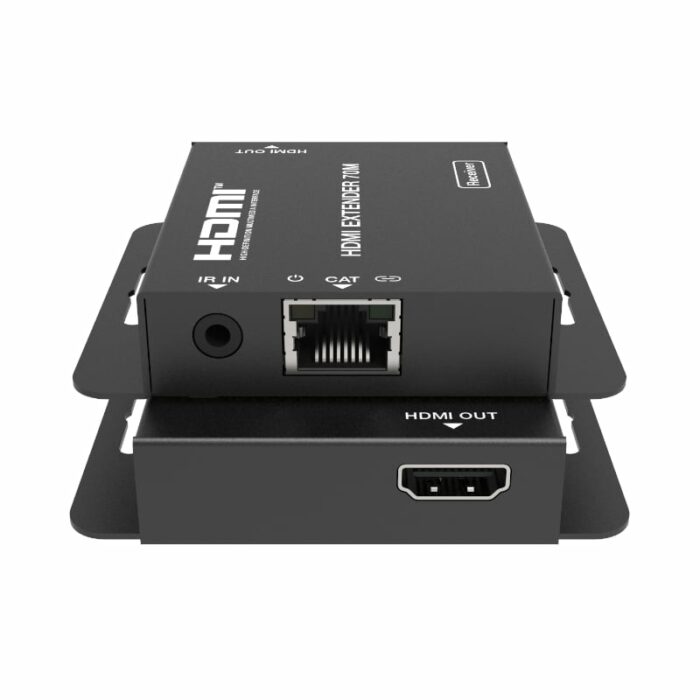

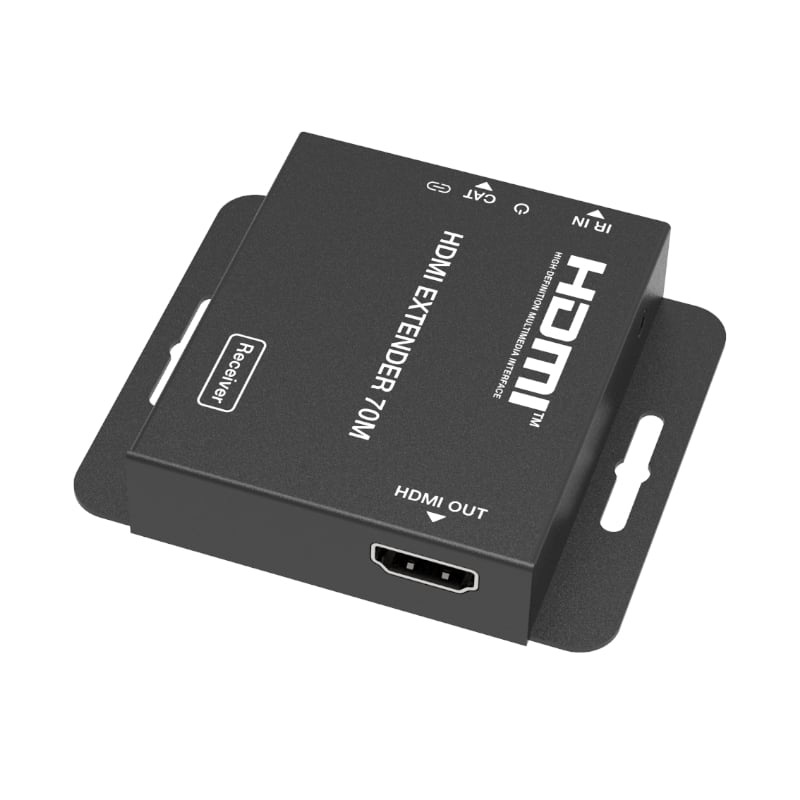

• Receiver:



  • Inputs:



    • 1X Ir In [3.5Mm Stereo Mini-Jack]


    • 1X Cat In [Rj45, 8-Pin Female]






  • Output:



    • 1X HDMI Type A [19-Pin Female]










• Housing: Metal Enclosure


• Colour: Black


• Power Supply 12V/1A Dc


• Power Consumption



  • Transmitter: 1.86W


  • Receiver: 0.87W






• Product Dimensions: 7.9 X 6.9 X 1.7 Cm


• Weight:



  • Transmitter: 132G


  • Receiver: 130G





What’S In The Box:

• Hdcvt HDMI 70M Extender Receiver X1


• Hdcvt HDMI 70M Extender Transmitter X1


• Ir Blaster Cable X1


• Ir Receiver Cable X1


• 12V/1A Dc Power Adapter X1


• User Manual X1
